Product Portfolio

Our EV Chargers

AC chargers from 3.3 kW to 22 kW and DC fast chargers from 60 kW to 400 kW — click any product to view full technical specifications and dimensions.

AC Chargers

AC EV Chargers

Single and three-phase AC chargers with OCPP 1.6, RFID, GSM/4G, Wi-Fi, and on-board Class-1 metering. Click any charger for full specifications.

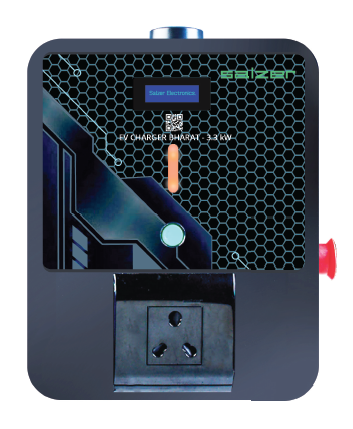

3.3 kW AC EV Charger
AC

3.3 kW AC EV Charger

Entry-level single-phase AC charger ideal for residential and light commercial use.

  • 3.3 kW
  • 16A Socket / 16A Industrial Socket
  • 280 × 230 × 101 mm
View full specs
7.4 kW AC EV Charger
AC

7.4 kW AC EV Charger

Single-phase charger with CCS Type 2 gun, RFID and GSM/4G + Wi-Fi connectivity.

  • 7.4 kW
  • CCS Type 2 Gun
  • 470 × 320 × 143 mm
View full specs

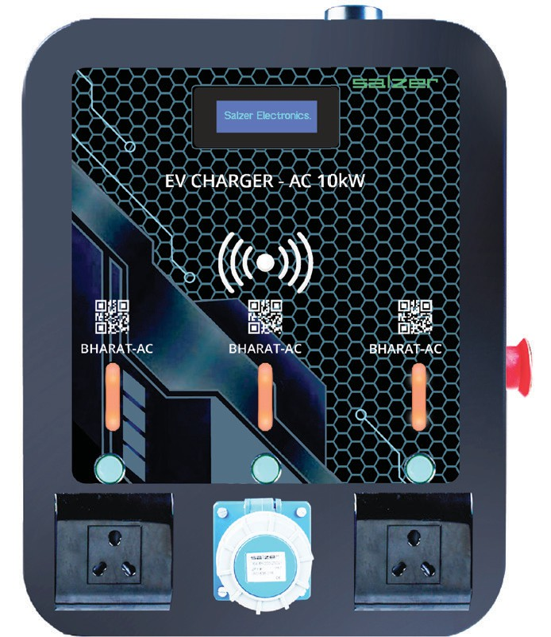

10 kW AC EV Charger
AC

10 kW AC EV Charger

Three-phase charger with three configurable connectors — ideal for multi-EV locations.

  • 10 kW (3*3.33kW)
  • 3× Configurable — 16A or Industrial Socket
  • 470 × 370 × 143 mm
View full specs

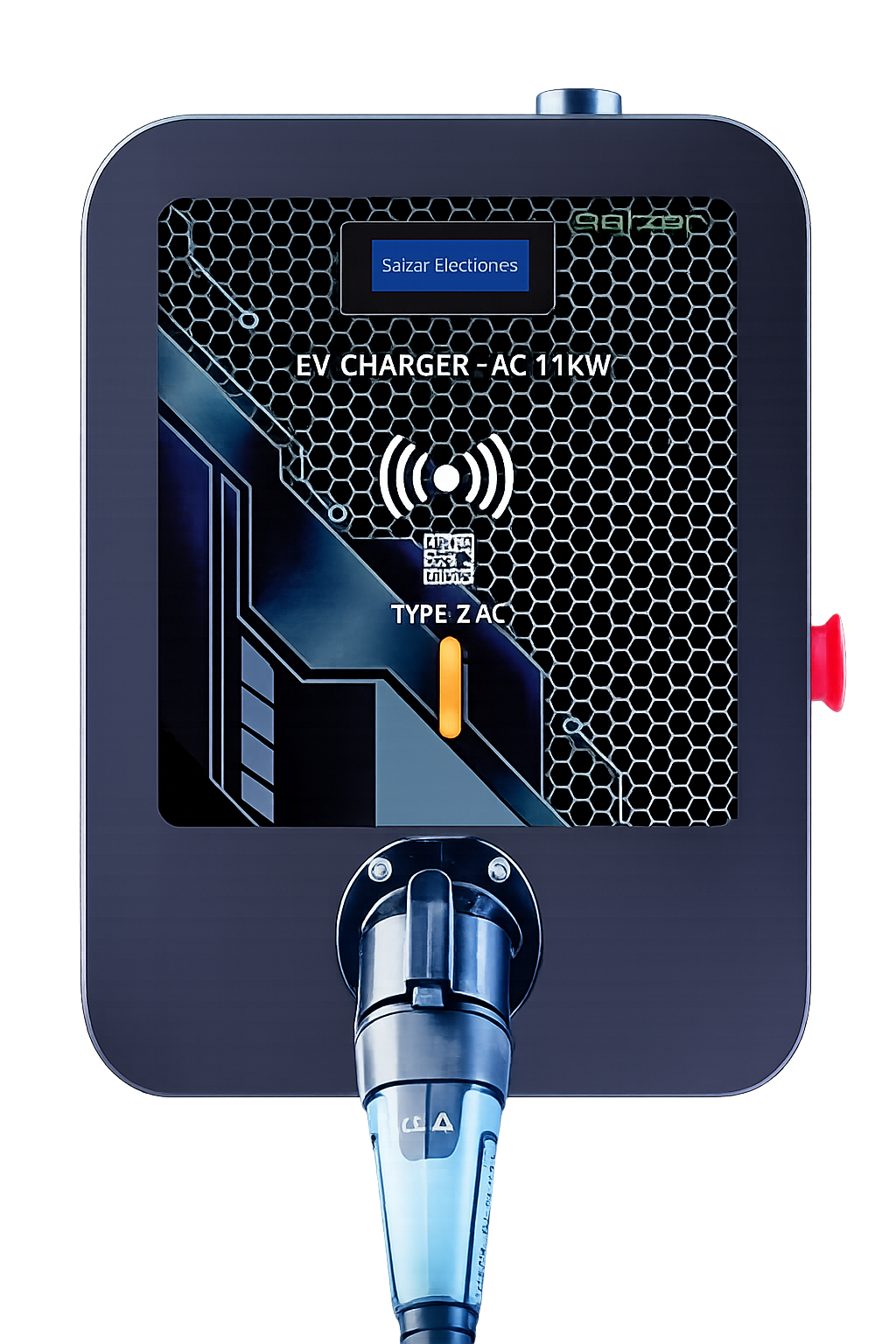

11 kW AC EV Charger
AC

11 kW AC EV Charger

Three-phase AC charger with single CCS Type 2 gun at 16A — the ideal mid-range option for commercial premises.

  • 11 kW
  • Single CCS Type 2 Gun
  • 470 × 320 × 143 mm
View full specs

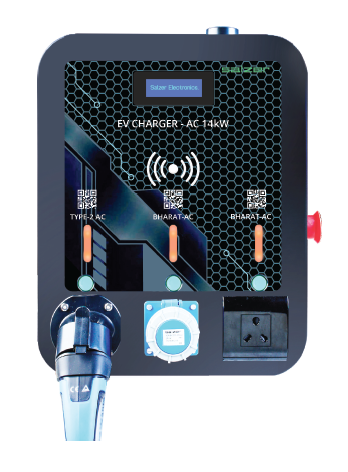

14 kW AC EV Charger
AC

14 kW AC EV Charger

Hybrid three-phase charger offering CCS Type 2, 16A industrial socket, and 16A socket in one unit.

  • 14 kW (1*7.4 kW, 2*3.3 kW)
  • Hybrid — CCS Type 2 + 16A Industrial Socket + 16A Socket
  • 470 × 370 × 143 mm
View full specs
15 kW AC EV Charger
AC

15 kW AC EV Charger

Three-phase dual-gun charger enabling simultaneous charging of two EVs via CCS Type 2.

  • 15 kW (2*7.4 kW)
  • Dual Gun — CCS Type 2
  • 470 × 370 × 143 mm
View full specs
22 kW AC EV Charger
AC

22 kW AC EV Charger

Highest-power AC charger in the range. Three-phase single CCS Type 2 gun for commercial premises.

  • 22 kW
  • Single CCS Type 2 Gun
  • 470 × 370 × 143 mm
View full specs
DC Fast Chargers

DC Fast Chargers

60 kW to 400 kW dual-gun DC fast chargers with real-time load sharing, 96% efficiency, and ARAI certification. Click any charger for full specifications.

60 kW DC EV Charger
DC

60 kW DC EV Charger

Dual-gun DC fast charger delivering up to 30 kW per gun with real-time load sharing.

  • 60 kW
  • CCS2: 150 – 1000 VDC
  • 1524 × 670 × 549 mm
View full specs
80 kW DC EV Charger
DC

80 kW DC EV Charger

Dual-gun charger at 40 kW per gun. Field-upgradable to 120 kW without hardware replacement.

  • 80 kW (Upgradable to 120 kW)
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
90 kW DC EV Charger
DC

90 kW DC EV Charger

Smart dual-gun charger — deliver up to 60 kW to a single EV or split load dynamically between two.

  • 90 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
120 kW DC EV Charger
DC

120 kW DC EV Charger

Dual-gun charger with dynamic 90 kW / 30 kW power split and OCPP 2.0.1 Smart Charging.

  • 120 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
180 kW DC EV Charger
DC

180 kW DC EV Charger

High-power dual-gun charger delivering 90 kW per gun with IP54 indoor/outdoor rating.

  • 180 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs

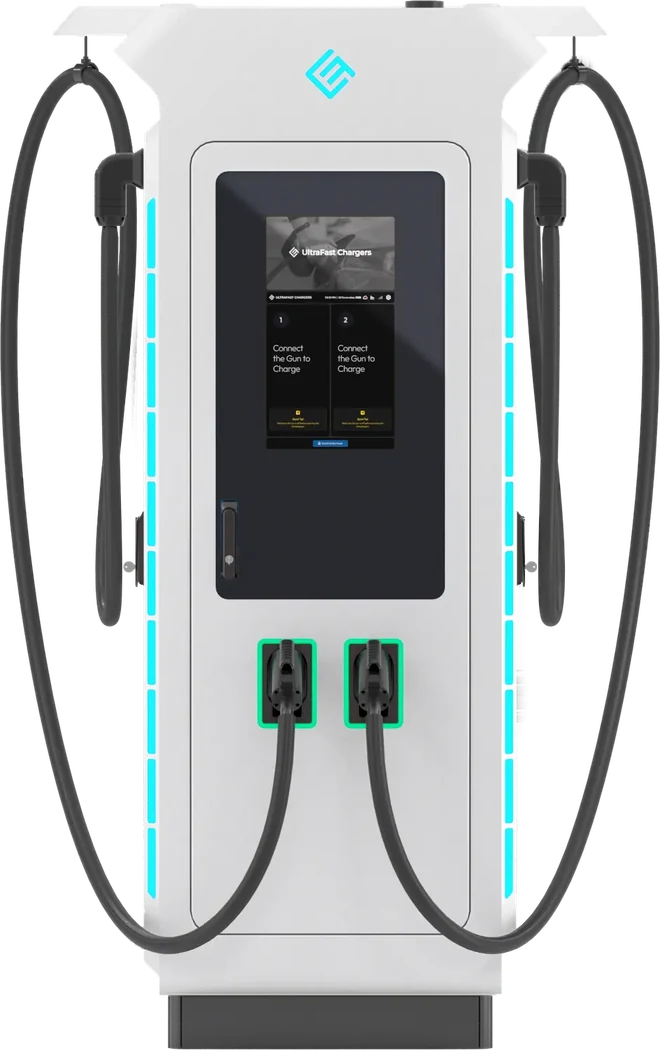

240 kW DC EV Charger
DC

240 kW DC EV Charger

Ultra-fast dual-gun charger at 120 kW per gun. Ideal for highway corridors and high-traffic hubs.

  • 240 kW
  • CCS2: 150 – 1000 VDC
  • 2100 × 750 × 750 mm
View full specs
320 kW DC EV Charger
DC

320 kW DC EV Charger

Ultra-fast dual-gun DC charger for electric buses, trucks and heavy commercial fleets.

  • 320 kW
  • 415 VAC
  • 2100 × 750 × 750 mm
View full specs
360 kW DC EV Charger
DC

360 kW DC EV Charger

Ultra-fast dual-gun DC charger for electric buses, trucks and heavy commercial fleets.

  • 360 kW
  • 415 VAC
  • 2100 × 750 × 750 mm
View full specs
400 kW DC EV Charger
DC

400 kW DC EV Charger

Ultra-fast dual-gun DC charger for electric buses, trucks and heavy commercial fleets.

  • 400 kW
  • 415 VAC
  • 2100 × 750 × 750 mm
View full specs
Compatibility

List of EV Chargers & Their Supported Vehicles

At-a-glance model, ordering code, and vehicle-type compatibility across the full Salzer range.

AC EV Chargers

Model (kW)kWCat. No.Cat. No.ScooterAutoCarVehicleInput VoltageInputOutput VoltageOutputMax CurrentMax AConnectorConn.
3.3SEVCSA033––230 VAC230 VAC16Modular 16A
SEVCSB033––230 VAC230 VACIndustrial Socket
7.4SEVCSC074––230 VAC230 VAC32CCS Type 2
10SEVCTD010–415 VAC230 VAC16Modular / Industrial Socket
SEVCTE010––415 VAC230 VACModular Socket
SEVCTF010––415 VAC230 VACIndustrial Socket
SEVCTG010–415 VAC230 VACModular / Industrial Socket
11SEVCTH011––415 VAC415 VAC16CCS Type 2
14SEVCTH014415 VAC230 VAC32CCS Type 2 / Industrial / Modular Socket
SEVCTI014–415 VAC230 VACCCS Type 2 / Industrial Socket
SEVCTJ014–415 VAC230 VACCCS Type 2 / Modular Socket
15SEVCTK015––415 VAC230 VAC32CCS Type 2
22SEVCTL022––415 VAC415 VAC32CCS Type 2

DC EV Chargers

Model (kW)kWCat. No.Cat. No.VehicleInput VoltageInputOutput VoltageOutputMax CurrentMax AConnectorConn.
60Contact Head Office415 VACUp to 1000 VDC88CCS2
60 Upgradable 120Contact Head Office415 VACUp to 1000 VDC88–176CCS2
80Contact Head Office415 VACUp to 1000 VDC117CCS2
80 Upgradable 160Contact Head Office415 VACUp to 1000 VDC117–234CCS2
90Contact Head Office415 VACUp to 1000 VDC132CCS2
90 Upgradable 120Contact Head Office415 VACUp to 1000 VDC132–176CCS2
120Contact Head Office415 VACUp to 1000 VDC176CCS2
120 Upgradable 180Contact Head Office415 VACUp to 1000 VDC176–264CCS2
160Contact Head Office415 VACUp to 1000 VDC234CCS2
240Contact Head Office415 VACUp to 1000 VDC351CCS2
320Contact Head Office415 VACUp to 1000 VDC469CCS2
360Contact Head Office415 VACUp to 1000 VDC527CCS2
400Contact Head Office415 VACUp to 1000 VDC588CCS2
Each vehicle icon = one EV that can charge at a time (e.g. two cars = dual gun)– = Not suitable / not applicable
Modular Socket = 16A 5-pin SocketIndustrial Socket = 3-Pin IEC60309 SocketCCS Type 2 = Combined Charging System Type 2 (IEC 62196-2)CCS2 = Combined Charging System 2
Resources

Downloads & Resources

AC EV Charger Catalogue

Full AC charger product range & specs

PDF • 15 MB

DC EV Charger Catalogue

Full DC charger product range & specs

PDF • 3.2 MB

AC EV Charger User Manual

Installation, setup & operating instructions

PDF • 1.4 MB
